MP Series – Twin

MP Twin – Unitary Piston Air Compressor & Vacuum Pump

TruNorth MP Series Compressors and Vacuum Pumps are completely oil-less and come with our relentless commitment to quality, performance and overall service to our customers. Our business mindset is to provide customers exactly what they require. Flexible component and product designs allow for a wide range of customization in flow and pressure performance, input power, port locations, accessories and more!


  • Thin-walled, Hard Coated Anodized Cylinder
  • Oil-less, Non-lube PTFE Piston Seal
  • Permanently Lubricated Ball Bearings
  • Proven “Unitary Piston” Technology
  • UL Recognized Motor & Thermal Protector
  • Balanced Eccentric/Connecting Rod Assembly
  • Epoxy E-Coated Wetted Components
  • Stainless Steel Valves, Retainers and Screws
  • Twin Front Mounted 9-Blade Fan
  • Die Cast Aluminum Components
  • Inlet filter/ Exhaust Muffler
  • Efficient 4.8” Diameter Motor
  • Fan Guard
  • Power Cord/ Termination
  • Contact Factory for More Options


Long Service Free Life
Low Vibration & Sound Level
Corrosion Resistance
Cool Operating Temperatures
Electrically Safe
Low Power Consumption

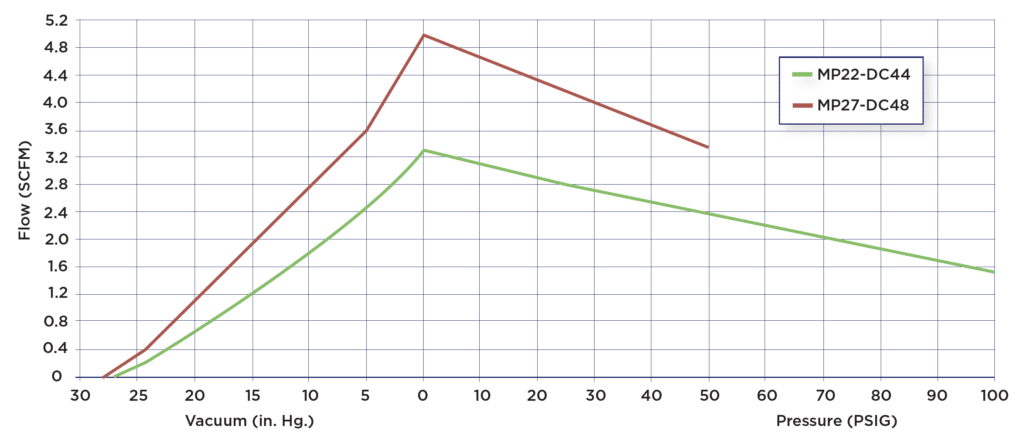

Performance Data

Model NumberMP22-DC44MP27-DC48
Head ConfigurationPressure/VacuumPressure/Vacuum
Free Air Flow3.35 SCFM5.01 SCFM
Max Continuous Pressure100 PSIG45 PSIG
Max Intermittent Pressure100 PSIG50 PSIG
Max Restart Pressure100 PSIG50 PSIG
Max Vacuum27.5″ Hg27.5″ Hg
Max Restart Vacuum27.5″ Hg27.5″ Hg
Max Ambient Air Temp104° F104° F
Min Ambient Start Temp50° F50° F
Motor Voltage/Frequency115V/60 Hz115V/60 Hz
Motor TypePSCPSC
Current at Rated Load5.2 Amps6.0 Amps
Power at Rated Load585 Watts655 Watts
Starting Current (Locked Rotor)18 Amps18 Amps
Capacitor Value12.5 μF12.5 μF
Min Full Load Speed1738 RPM1712 RPM
Thermal ProtectorYesYes
Net Weight12.3 lbs12.3 lbs

All of the compressors & pumps manufactured by TruNorth are very customizable for OEM applications.

Don’t see the performance data you’re looking for?

The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of TruNorth products. It is the responsibility of the user to determine if this product is suitable for the intended use. The user assumes all risk and liability whatsoever in connection therewith. TruNorth does not warrant, guarantee or assume any obligation in connection with this information.
